import sys
import numpy as np
import cv2
from sklearn.cluster import KMeans
import matplotlib.pyplot as plt
import glob
import os
img_files = '/Users/l.smin/PycharmProjects/pythonProject/RGB/photo/100/A.jpg'
if not img_files:
print ('jpg 없음...')
sys.exit()
image = cv2.imread(img_files)
#img resize
resize_img = cv2.resize(image, (500, 500))
# 채널을 BGR -> RGB로 변경
resize_img = cv2.cvtColor(resize_img, cv2.COLOR_BGR2RGB)
resize_img = resize_img.reshape((resize_img.shape[0] * resize_img.shape[1], 3)) # height, width 통합 (차원)
#kmeans k개의 데이터 평균을 만들어 데이터를 clustering하는 알고리즘
k = 5 # 1개의 평균값 구하겠다.
clt = KMeans(n_clusters = k)
clt.fit(resize_img)
center = clt.cluster_centers_
def centroid_histogram(clt):
# grab the number of different clusters and create a histogram
# based on the number of pixels assigned to each cluster
numLabels = np.arange(0, len(np.unique(clt.labels_)) + 1)
(hist, _) = np.histogram(clt.labels_, bins=numLabels)
# normalize the histogram, such that it sums to one
hist = hist.astype("float")
hist /= hist.sum()
# return the histogram
return hist
hist = centroid_histogram(clt)
#print('percentage',hist)
#[ 0.68881873 0.09307065 0.14797794 0.04675512 0.02337756]
def plot_colors(hist, centroids):
# initialize the bar chart representing the relative frequency
# of each of the colors
bar = np.zeros((50, 300, 3), dtype="uint8")
startX = 0
# loop over the percentage of each cluster and the color of
# each cluster
for (percent, color) in zip(hist, centroids):
# plot the relative percentage of each cluster
endX = startX + (percent * 300)
cv2.rectangle(bar, (int(startX), 0), (int(endX), 50),
color.astype("uint8").tolist(), -1)
startX = endX
# return the bar chart
return bar
bar = plot_colors(hist, clt.cluster_centers_)
# show our color bart
plt.figure()
plt.axis("off")
plt.imshow(bar)
plt.show()
#print(center)
input

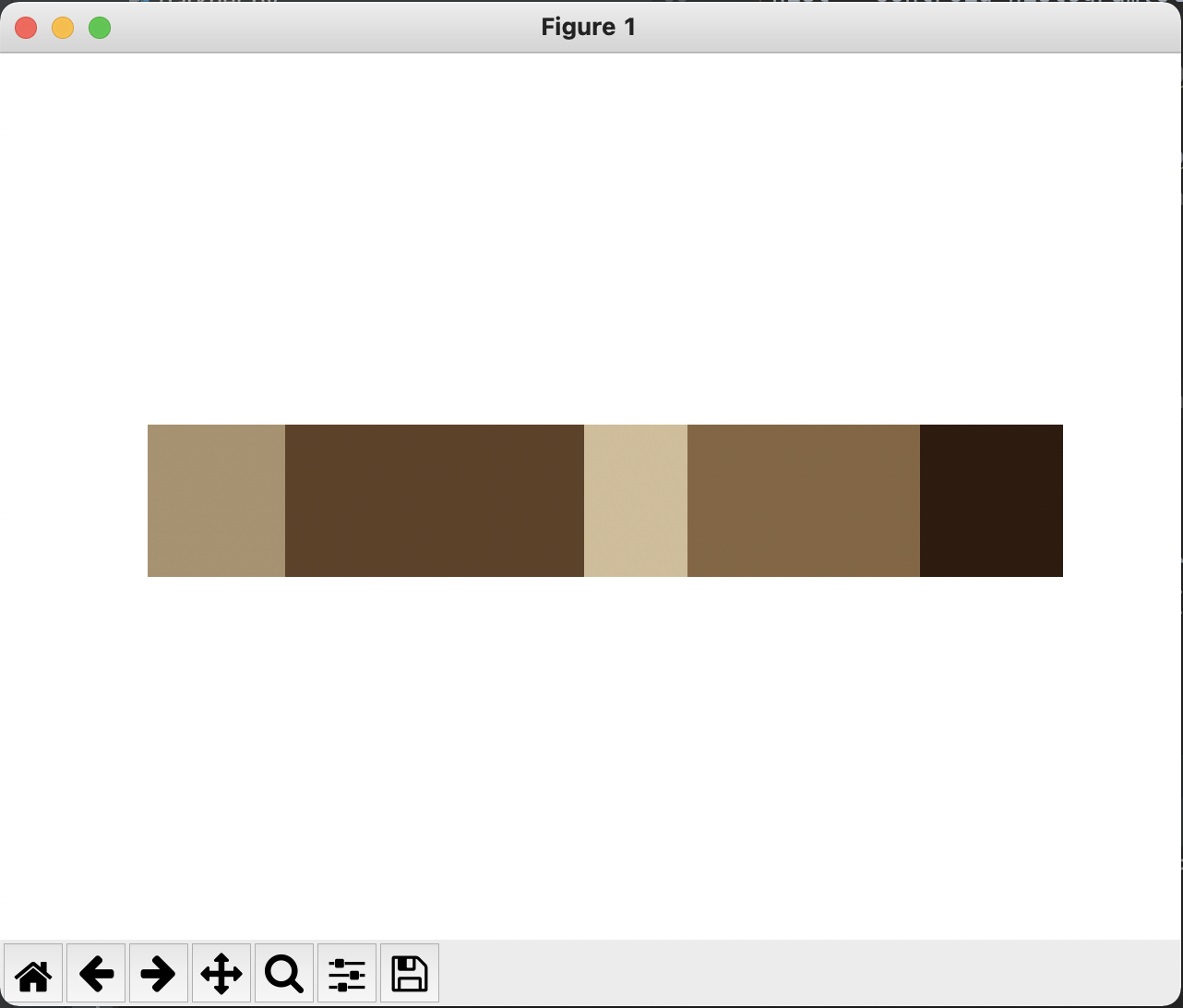

output
